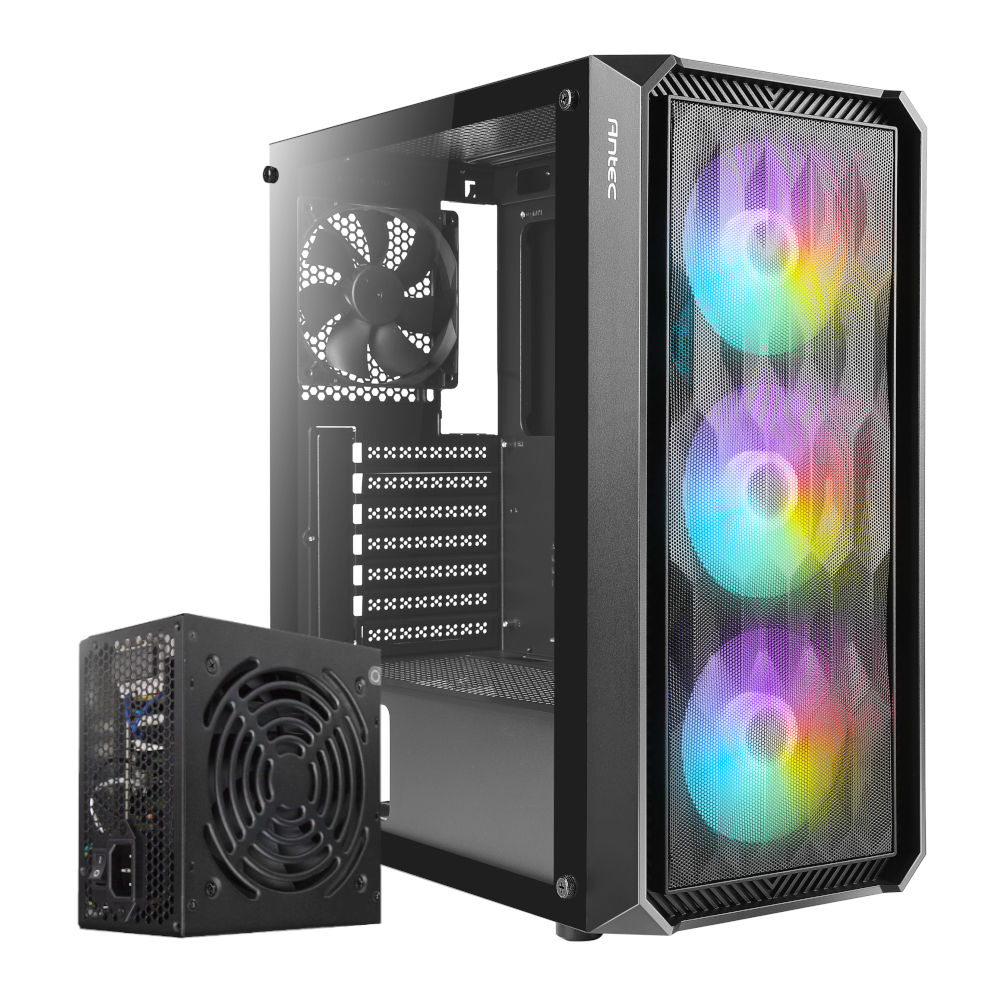

NX292 + ATOM V550 Tower Gaming Chassis
The Antec NX292 E-ATX ARGB Mid-Tower Gaming Chassis and Atom 550W Power Supply bundle is a great way to bring some life to your existing PC build or a great way to start a new one.
The Antec NX292 E-ATX ARGB Mid-Tower Gaming Chassis effortlessly combines a bevy of in-demand features: USB 3.0 connectivity, ample storage drive bays, plenty of room for expansion, and includes 3 x 120mm fixed mode RGB fans in the front panel and 1 x 120mm fan in the rear. With support for up to a 360 mm liquid cooling radiator in front, the NX292 is easy to build with and easy to cool. The tempered glass side panel allows you to show off all of your gaming hardware inside your case. The unique front mesh design along with the mesh magnetic dust filters help keep temperatures low while free from any dirt or dust. This larger mid-tower chassis supports larger E-ATX motherboards with enough space for all your hardware needs.
Antec’s new generation of Atom power supplies is crafted for quality, efficiency, and performance. Featuring an output of 550W, and a quiet 120 mm silent fan. The 120mm silent fan is ideal for quiet computing and is designed for longer life, guaranteeing hours of reliable operation. For safety, the CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. It also features a thermal manager which gives you advanced fan control for optimal heat and noise management and will allow your PSU to stay at an optimal temperature. The Antec Atom V550 ATX Power Supply is the power supply you won’t want to miss out on.
FEATURES:
- Great Airflow and Ventilation
- Tempered Side Glass Panel
- Unique Front Mesh Design
- 3x 120mm RGB Front Fans
- E-ATX Motherboard Support
- Top and Bottom Magnetic Dust Filters
- 550W Output
- CircuitShield™ – Industrial grade protections: OPP/OVP/UVP/SCP
- 120mm Silent Fan
SPECIFICATIONS:
Antec NX292 E-ATX ARGB Mid-Tower Gaming Chassis
- Form Factor: Mid Tower
- Materials: Steel + Plastic
- Mainboard Support: E-ATX, ATX, Micro-ATX, ITX
- Front Access & Controls: Power, Reset, USB 2.0 x2, USB 3.0 x1, Headphone/Mic Combo Jack
- Side Panel: Tempered Glass
- Drive Bays: Expansion Slots: 7, 5.25″: N/A, 3.5″ /2.5″: 2/1, 2.5″: 2
- Fan Support:
- Front: 3 x 120mm / 2 X 140mm
- Top: 2 x 120mm/2 x 140mm
- Power Supply Shroud: 2 x 120mm
- Rear: 1 x 120mm
- Included Fan(s): 3 x 120mm fixed mode RGB fans in front & 1 x 120mm regular fan in rear
- Radiator Support:
- Front: 120/140/240/280/360mm
- Rear: 120mm (Length ≤ 156mm)
- Clearance:
- Max GPU Length: ≤ 320mm
- Max CPU Cooler Height: ≤ 155mm
- Max PSU Length: ≤ 165mm(with HDD), ≤ 300mm(without HDD)
- Dust Filter: Top / Bottom
- Product Dimensions: 40.6 x 20.6 x 45 cm
- Product Weight: 4500g
- Antec Atom V550 Power Supply
- Input: 230Vac, 5A, 47-63Hz
- Output: +3.3V/18A, +5V/16A, +12V/42A, -12V/0.3A, +5Vsb/2.5A
- Total Output: 550W
- Connectors:
- 24-Pin Main Connector x1
- 8(4+4) Pin EPS12V x1
- 8(6+2) Pin PCI-E x2
- SATA x5
- Molex x2
- FDD x1
- Cooling: 120mm Silent Fan
WHAT’S IN THE BOX:
- Antec NX292 E-ATX ARGB Mid-Tower Gaming Chassis – Black x1
- Antec Atom V550 ATX Power Supply – Black x1
